24V 100Ah Lithium Battery LiFePO4 Home Energy Storage
Description

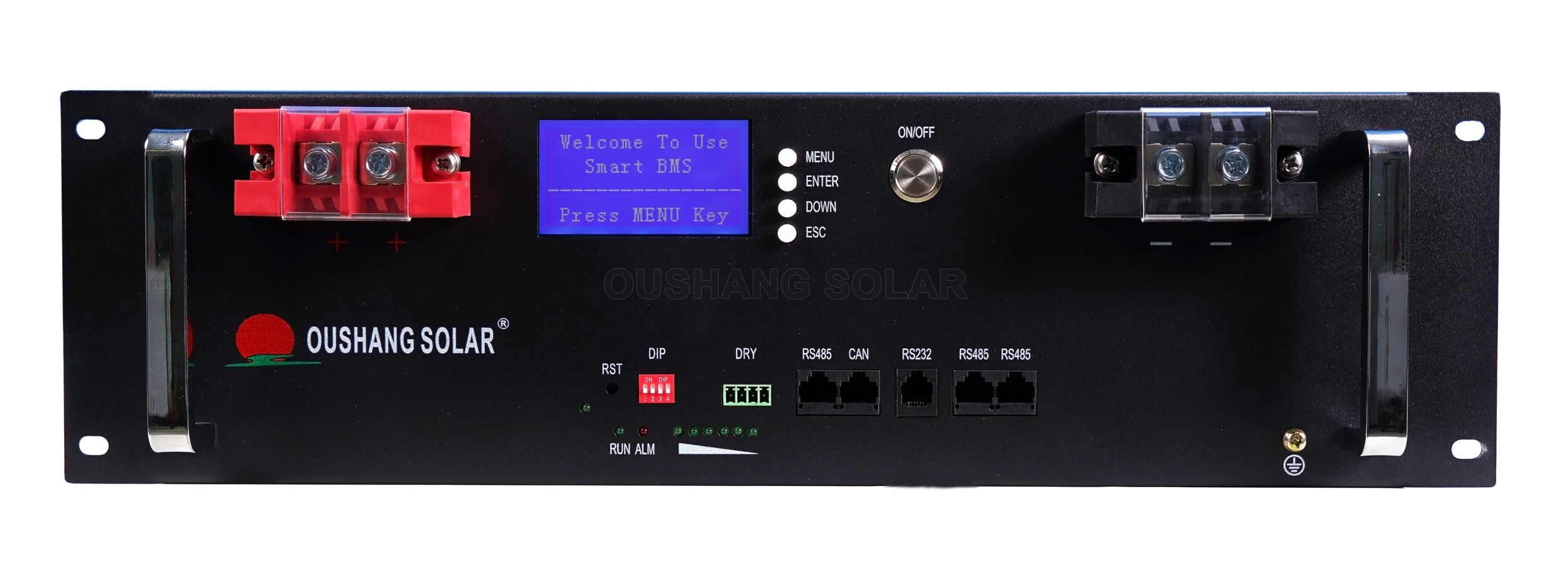

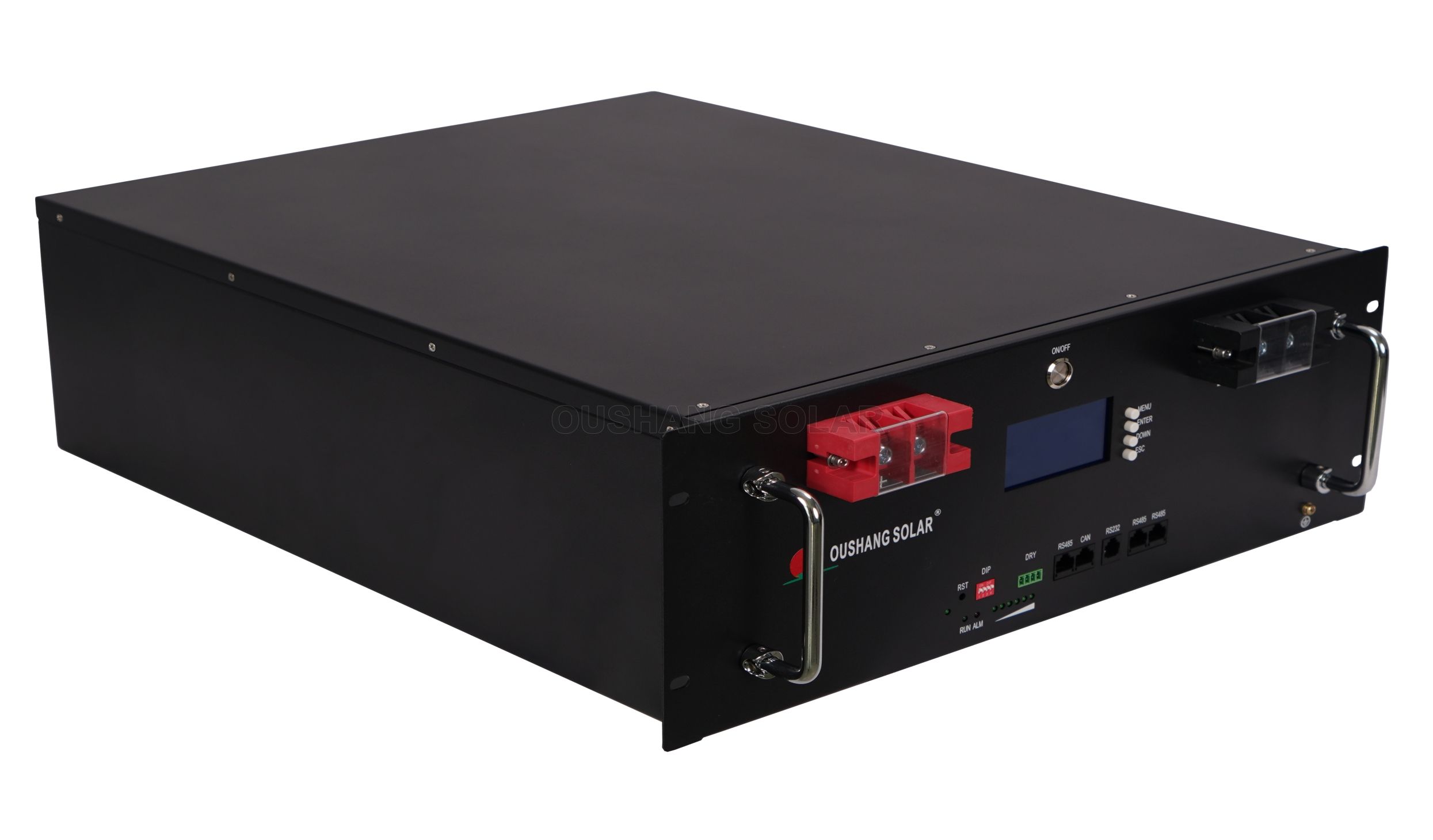

A 24V 100Ah LiFePO4 battery, model OS-48200T/E, for home energy storage, vehicles, UPS, and telecom systems. Long cycle life, high safety and stability, metal casing, wall-mount or floor installation.
Specifications
| Display | With Display Screen |
| IP Class | IP20 |
| Case Type | Wall Mount / Ground |
| Cycle Life | ≥6000 cycles |
| Net Weight | 24 kg |
| Application | Energy Storage, Vehicle, UPS, Telecom |
| Battery Type | LiFePO4 |
| Gross Weight | 27 kg |
| Model Number | OS-48200T/E |
| Case Material | Metal |
| Rated Voltage | 25.6V |
| Charge Current | 20A |
| Charge Voltage | 72V |
| Energy Storage | 2.5kWh |
| Rated Capacity | 100Ah |
| Material System | LiFePO4 |
| Charge Temperature | 10~45℃ |
| Continuous Current | 20A |
| Max Charge Current | 50A |
| Storage Temperature | -20~+35℃ |
| Efficiency of Charge | 90% |
| Discharge Temperature | 10~45℃ |
| Charge Cut-off Voltage | 25.6V |
| Monthly Self-discharge | ≤2% |
| Pack Dimension (L*W*H) | 526*343*254 mm |
| Efficiency of Discharge | 100% |
| Package Dimension (L*W*H) | 556*373*284 mm |
