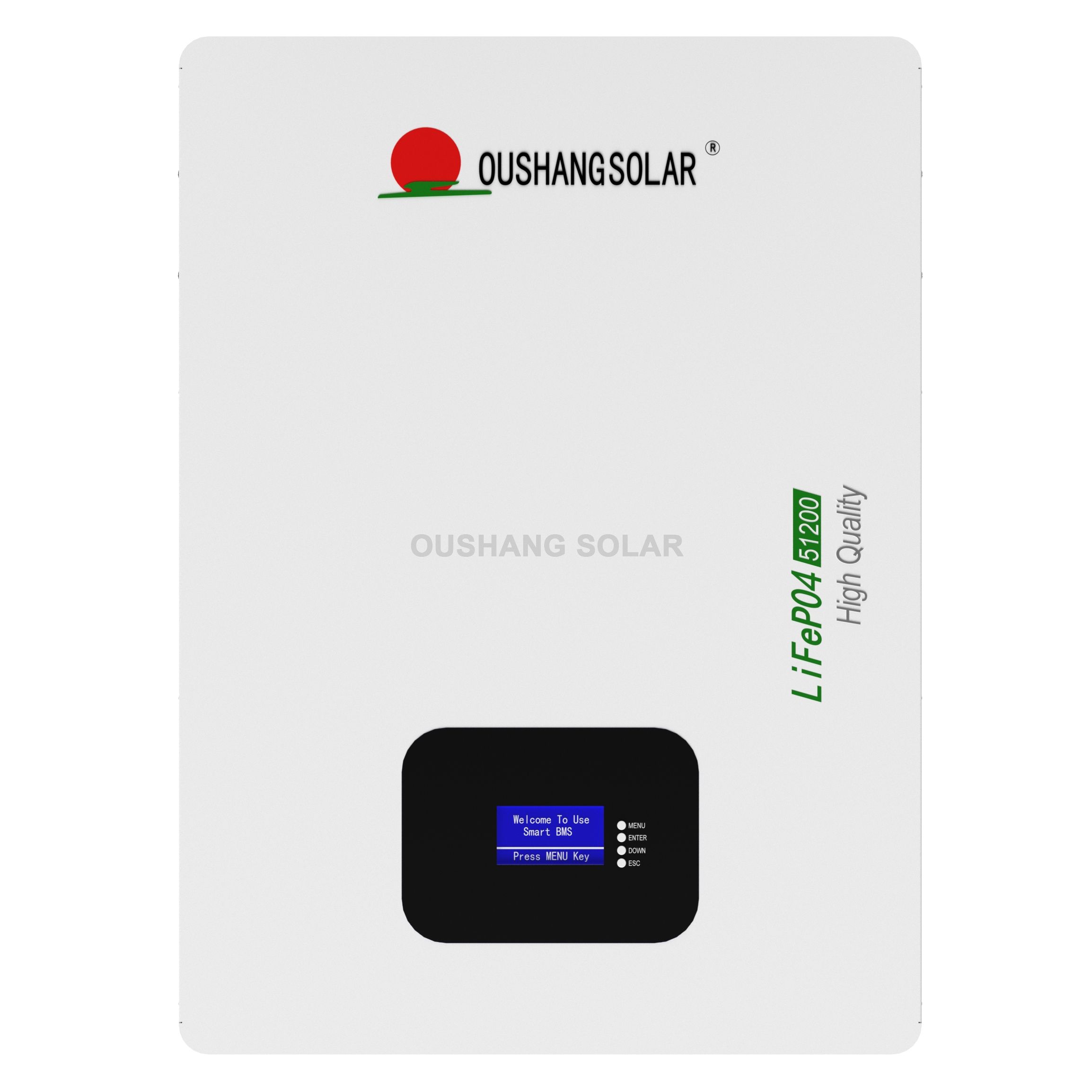

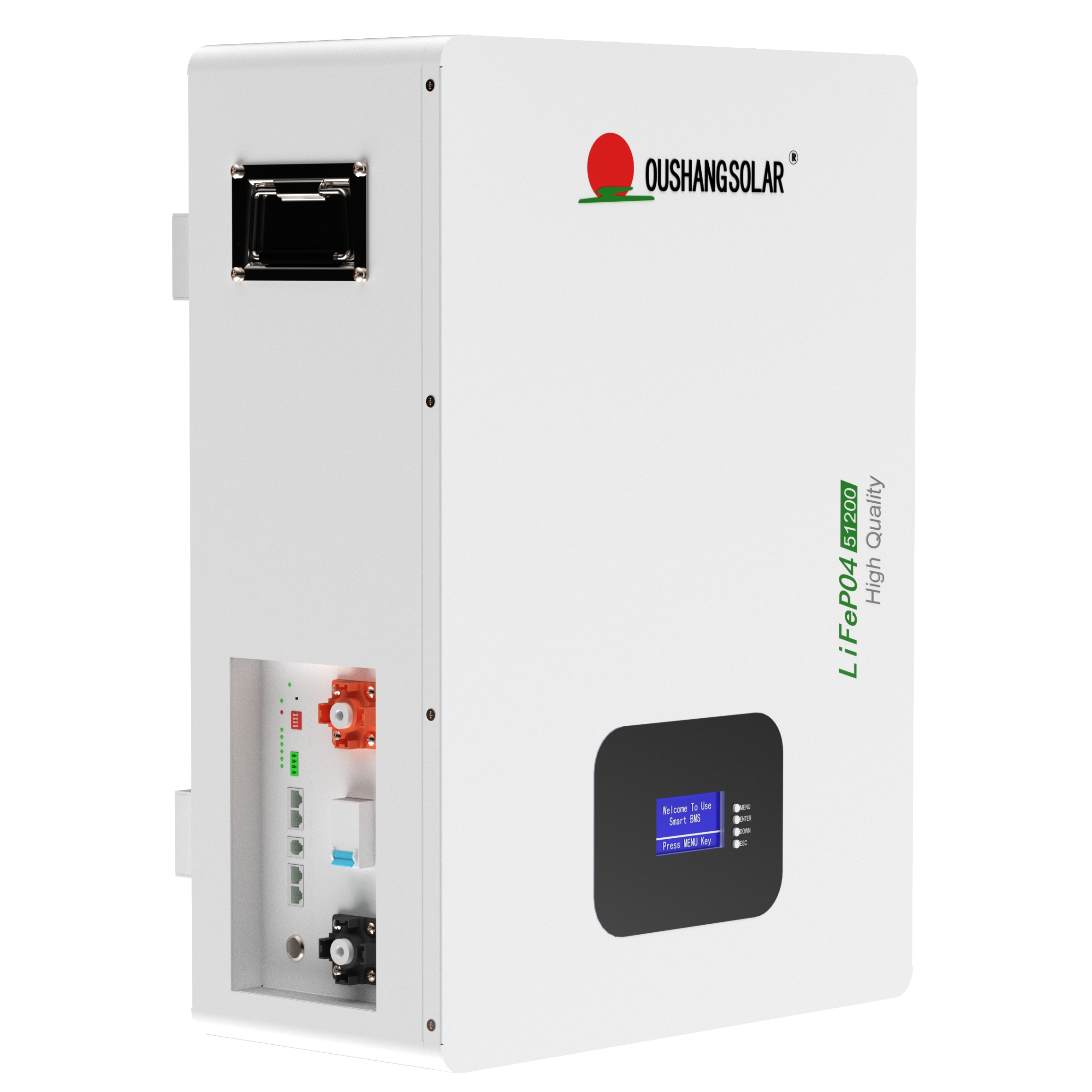

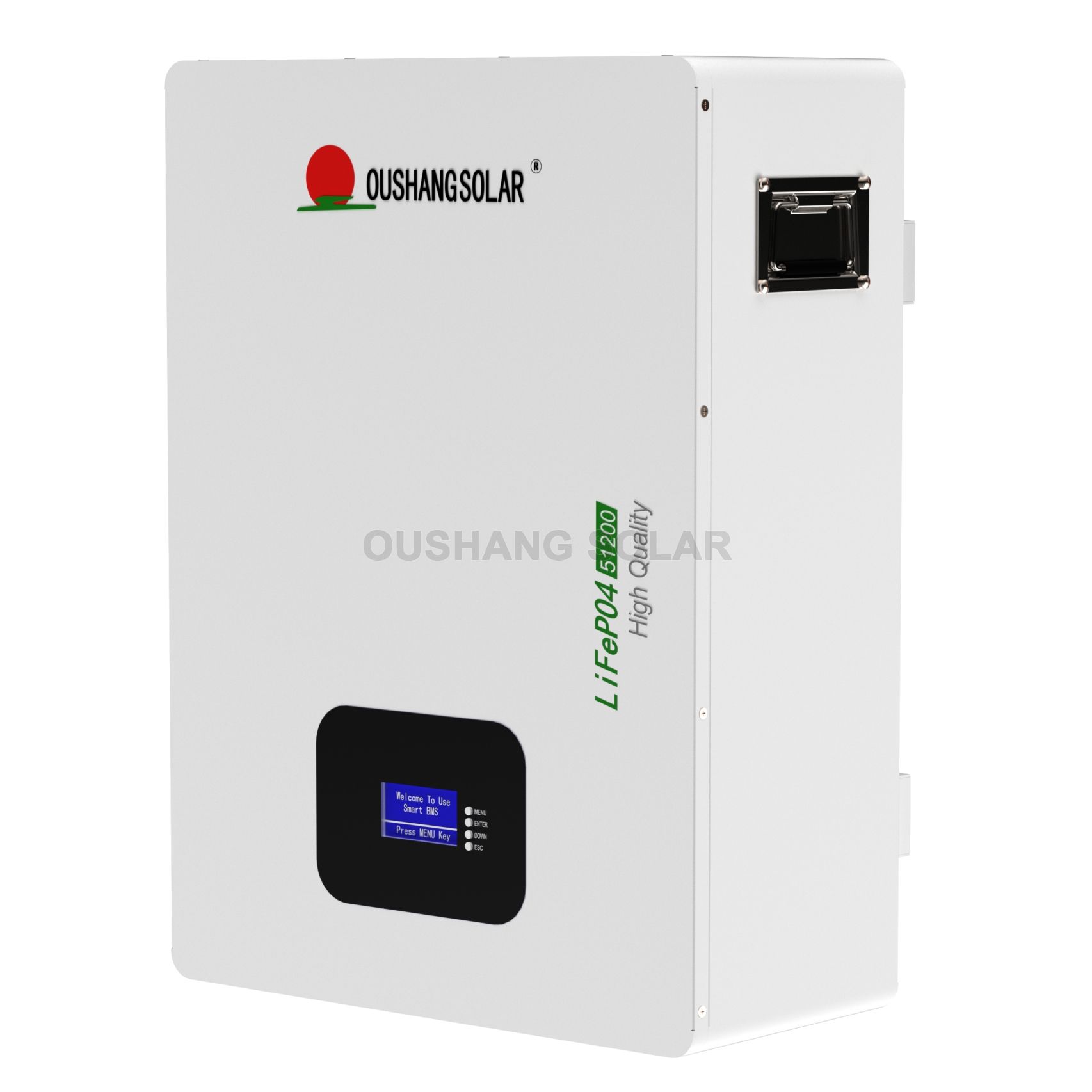

48V 100Ah Lithium Battery For Home Energy Storage
Description
A 48V 100Ah LiFePO4 battery, model OS-48100G/D, for home energy storage, vehicles, UPS, and telecom systems. Long cycle life (over 6000 cycles), high safety and stable performance, metal casing, wall-mount or floor installation.
Specifications
| Display | With Display Screen |
| Voltage | 51.2V |
| Capacity | 100Ah |
| IP class | IP20 |
| Case type | Wall Mount / Ground |
| Charge mode | 0.2C to 54.8V then 54.8V charge current to 0.02C(CC/CV) |
| Battery Type | LiFePO4 |
| Model Number | OS-48100G/D |
| Case material | Metal |
| Net Weight(kg) | 44 |
| Material system | LiFePO4 |
| Gross Weight(kg) | 47 |
| Charge current(A) | 20 |
| Charge voltage(V) | 72 |
| Charge temperature | 10~45℃ |
| Rated capacity(AH) | 100 |
| Rated voltage(Vdc) | 51.2 |
| Energy storage(KWH) | 5.12 |
| Storage temperature | -20~+35℃ |
| Efficiency of charge | 90% |
| Continuous current(A) | 20 |
| Discharge temperature | 10~45℃ |
| Max. Charge current(A) | 50 |
| Efficiency of discharge | 100% |
| Pack Dimension L*W*H(mm) | 526*343*254 |
| Charge cut-off voltage(VDC) | 25.6/42.4 |
| Package Dimension L*W*H(mm) | 556*373*284 |
