Chain Grate Boiler For Sale
Description

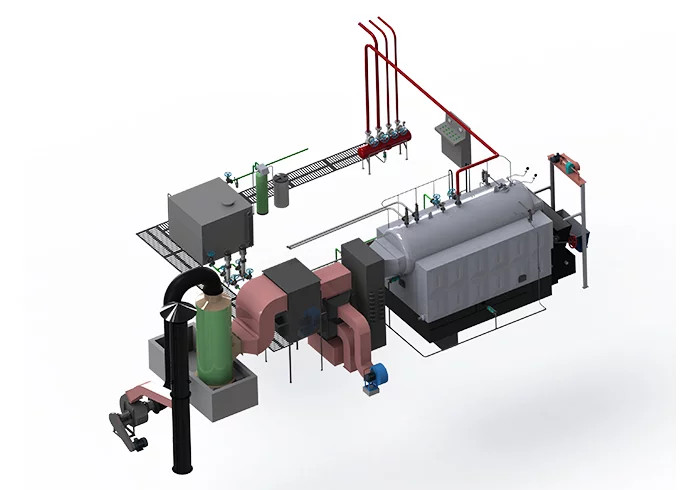

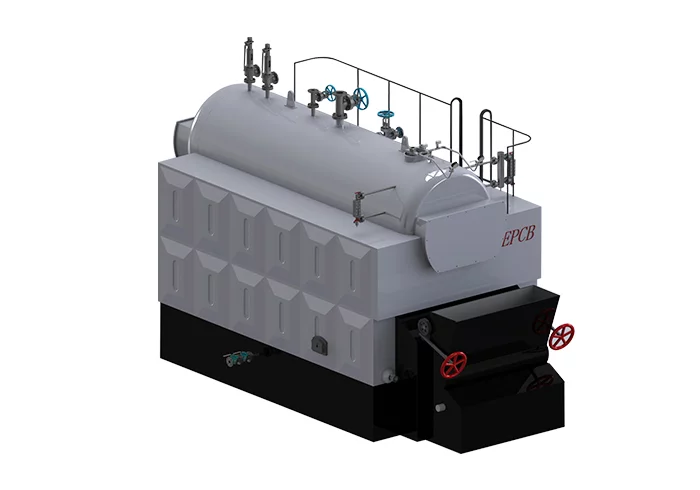

EPCB easy-to-operate chain grate boiler, capacity 1-20 tons/hour, pressure 1.0-2.5 MPa, suitable for coal types including bituminous coal, soft coal, anthracite, etc. Equipped with efficient economizer and dust collector, thermal efficiency up to 83.1%, widely used in food, textile, chemical, and other industries.
Specifications
| Fuel | Bituminous Coal, Soft Coal, Anthracite, Lignite, Poor Coal, etc. |
| Capacity | 1~20 T/h |
| Pressure | 1.0 ~ 2.5 MPa |
| Rated capacity t/h | 1, 2, 4, 6, 8, 10, 12, 15, 20 |
| Body heating area m² | 22.99, 48.7, 96.34, 148.15, 174.4, 226.2, 276, 374.5, 669 |
| Coal consumption kg/h | 118.76, 231.30, 450.79, 674.54, 899.39, 1118.81, 1342.57, 1674.18, 2232.23 |
| Biomass consumption kg/h | 171.63, 334.27, 651.48, 974.85, 1299.81, 1616.92, 1940.30, 2419.54, 3226.05 |
| Rated steam pressure MPa | 0.7/1.25, 0.7/1.25/1.6, 1.25/1.6 |
| Feed water temperature ℃ | 20 |
| Boiler thermal efficiency % | 78.1, 80.2, 82.3, 82.5, 82.5, 82.9, 82.9, 83.1, 83.1 |
| Rated steam temperature ℃ | 170/194, 170/194/204, 194/204 |
| Weight of boiler largest parts ton | 18, 22, 30.1, 40, 21/14, 23/17, 23/19, 21/24, 25/24 |
| Size of boiler largest parts Width mm | 1900, 2600, 2700, 3000, 3000, 3200, 3200, 3400, 3800 |
| Size of boiler largest parts Height mm | 2900, 3500, 3500, 3500, 3500, 3500, 3500, 3500, 7100 |
| Size of boiler largest parts Length mm | 4600, 5800, 6700, 7000, 7300, 7600, 7600, 8500, 9500 |
