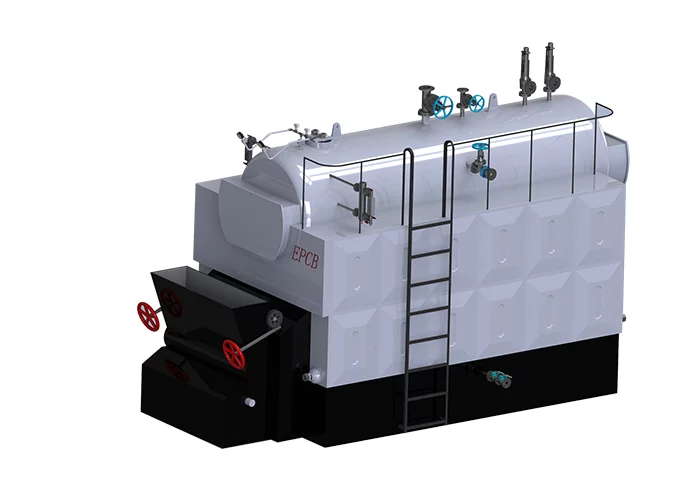

Coal Steam Boiler For Chemical Industry
Description

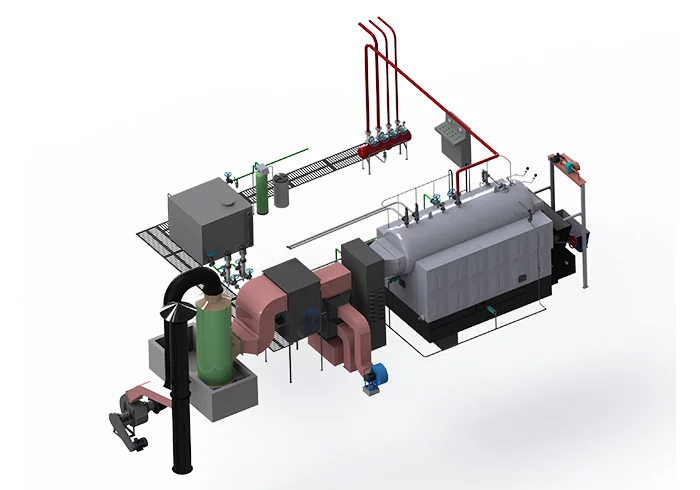

This product is a coal/biomass steam boiler designed for the chemical industry, capacity 1-20 tons/hour, pressure 0.7-1.6 MPa. Uses high-efficiency heat transfer element threaded smoke tubes, thermal efficiency 6-8% higher than national standard. Auxiliary equipment can be configured according to customer needs, and has designed boiler systems for over 15,000 enterprises.
Specifications
| Fuel | Any Type of Coal you want to use |
| Capacity | 1~20 T/h |
| Pressure | 0.7~1.6 M Pa |
| Fuel type | Class II Soft Coal, Biomass, Wood Chips, Wood Pellets, Rice Husk, Palm Kernel Shell, etc. |
| Application | Chemical factory |
| Boiler Type | Single Drum Coal Biomass Fired Steam Boiler |
| Body heating area (m²) | 22.99-669 |
| Coal consumption (kg/h) | 118.76-2232.23 |
| Biomass consumption (kg/h) | 171.63-3226.05 |
| Rated steam pressure (MPa) | 0.7/1.25/1.6 |
| Feed water temperature (℃) | 20 |
| Boiler thermal efficiency (%) | 78.1-83.1 |
| Rated steam temperature (℃) | 170/194/204 |
