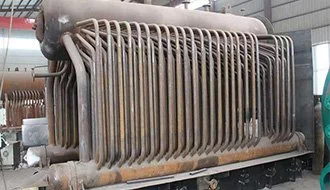

EPCB Double Drums Steam Boiler
Certifications
Boiler Quality CertificateCertificate of Origin
Description
EPCB double drum biomass steam boiler suitable for chemical plants. Adopts water tube structure, chain grate or reciprocating grate, can burn various biomass fuels. Equipped with water shortage alarm, overpressure alarm and other interlock protection devices for high safety. Widely used in textile, food, chemical, and other industries.
Specifications
| Fuel | Biomass Pellets, Wood Chips, Rice Husk, Sawdust, Charcoal, Oat Hulls, Palm Kernel Shell, Coconut Shell, Sunflower Seed Shell, etc. |
| Capacity | 1~25T/h |
| Pressure | 1.0 ~ 2.5 MPa |
| Structure | Double drums water tube |
| Rated steam pressure | 1.25/1.6/2.5 MPa |
| Feed water temperature | 20-104 ℃ |
| Fuel consumption (Coal) | 454.99-2770.29 kg/h |
| Rated steam temperature | 194/204/226 ℃ |
| Weight of largest parts | 30-56 ton |
| Boiler thermal efficiency | 81.54-83.7% |
| Heating area (Economizer) | 69.76-267.8 m² |
| Fuel consumption (Biomass) | 657.55-4003.66 kg/h |
| Heating area (Boiler body) | 99.68-625.3 m² |
| Size of largest parts (Width) | 2800-3400 mm |
| Size of largest parts (Height) | 3500 mm |
| Size of largest parts (Length) | 6800-11500 mm |
