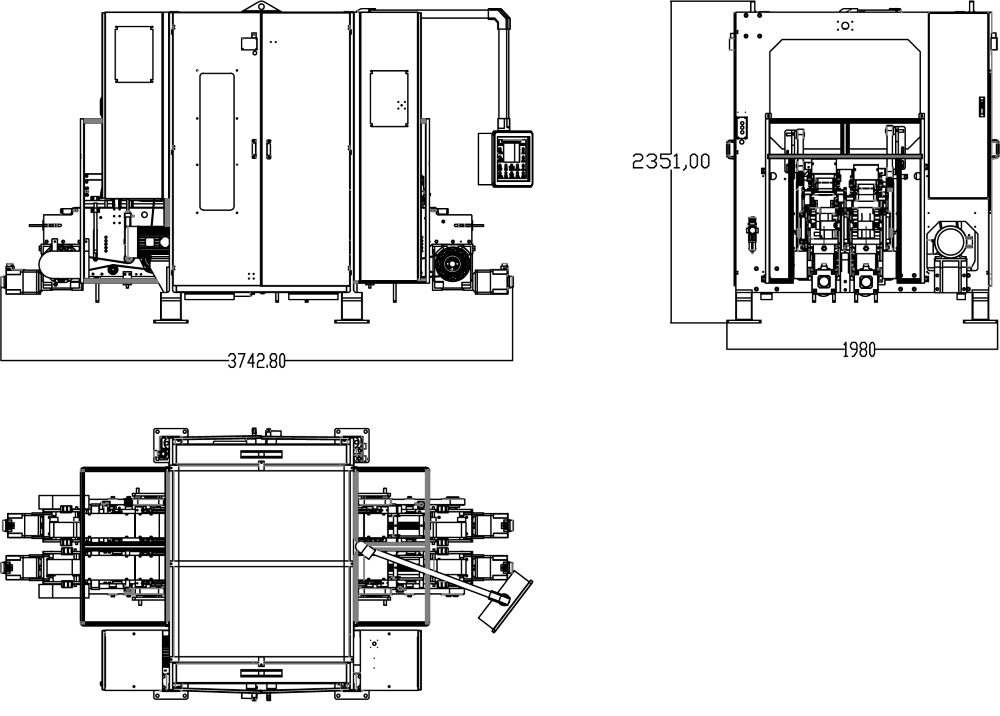

OK-702 Type Double Lanes Log Saw Cutting Machine
Description
The OK-702 type double-lane log saw cutting machine is used for precise cutting of toilet paper rolls. Driven by servo motor, PLC control, touch screen parameter setting. Two models (A/B) available, adjustable cutting length, high stability.
Specifications
| Model | OK-702A / OK-702B |
| Power | 10 KW |
| Cutting lane | 2 lanes |
| Stable speed | 120 cuts/min (OK-702A) / 200 cuts/min (OK-702B) |
| Function type | Movement of round blade in revolved swing and continuous and onward movement of paper roll with control |
| Blade-greasing | Greasing by spraying oil reek, which the greasing time can be programming controlled by panel |
| Blade-grinding | Pneumatic grinding wheel, which the grinding time can be programming controlled by panel |
| Cutting length | Variable, Servo control, Tolerance: ±1mm |
| Designing speed | 0-150 cuts/min (OK-702A) / 0-250 cuts/min (OK-702B) |
| Parameter setting | Touch screen |
| Programming control | PLC |
| Driving control for material conveying | Drived by servo motor |
| Outer dia. of round blade for paper slitting | 610mm |
